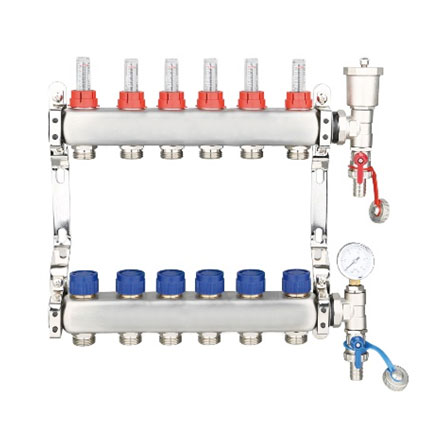

Stainless steel manifold for 2 to 12 heating circuits for distribution, shut off and balancing of the heating/cooling water flow of radiant paneo heating/cooling systems in compliance with BSEN 1264-4. The flow rte for each heating circuit can be continuously adjusted via a regulating shut off valve integrated into the return circuit.
- M3 0 x 1.5 valve connection for all common actuators (Optional extra)
- Precise adjustment even at high flow rates
- Premium quality O-ring valve gaskets (EPDM) ensure permanent ease of operation and high durability.
- 1” MT flat sealing connections to heat generator, connection to heating circuits via ¾” eurocone for clamp ring screw connections; includes a set with ¾” swivel connection for shut-off, filling, draining and flushing.
Ready mounted on wall bracket, low-noise pipe clamps in accordance with DIN 4109
